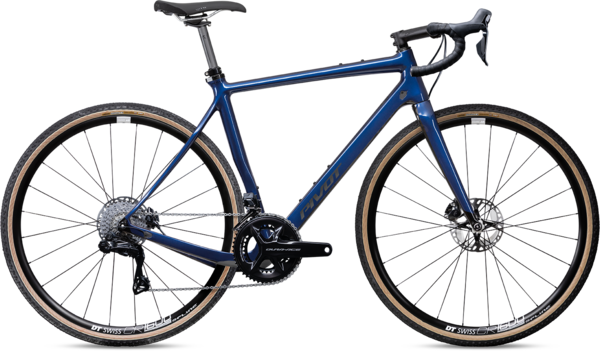

Pivot Cycles Vault Team Dura-Ace Di2

Pivot Cycles Vault Team Dura-Ace Di2
  • Color: Deep Metallic Blue
  • Wheelset: Carbon Wheels
  • Color: Firebrick Red
  • Wheelset: Carbon Wheels
$8,749.00 - $9,499.00
Please select options


At the Speed of Imagination

With generous tire clearance thanks to dual dropped chainstays, the Vault is a tire change away from being ready for any road and any pursuit. From 25c's to high volume 650b, set your tire selection free, and tackle anything from primitive gravel to smooth single track to asphalt, and everything in between.

Patent pending ISO FLEX seat post technology is without equal when it comes to all-day, all-terrain pedaling comfort, and our award-winning gravel bike frames are uniquely ride tuned for compliance. Custom tuned carbon layups and the ISO Flex seat post keep the Vault ride experience stable and smooth for hour after hour, The Pivot Vault truly covers every mile at the Speed of Imagination.

Get everything you need to know about the Vault.

- Next-generation cross/gravel/road geometry – works for any surface
- Gobs of tire clearance and 1x or 2x drivetrain compatible
- Clears sub-compact chainrings, traditional road gearing, and 1x systems with clearance for crank arm based power meters
- Removable FD mount with integrated cover
- Fits up to 700 X 47C and 650b x 2.0” tires
- Patent pending ISO FLEX Technology fits 27.2 or 30.9 seatposts and isolates the seatpost from the frame for extraordinary comfort with uncompromising frame stiffness and control
- Internal cable routing for all lines including stealth style dropper posts via Pivot's easy to service and silent Cable Port System
- Top tube bag mounts to fuel the longest rides
- Hidden fender mounts for a clean, sleek appearance and all weather versatility
- Full carbon frame featuring proprietary hollow core internal molding technology for a high stiffness to weight ratio
- Optimized layup structure with ideal top tube and stay shaping for comfort and power output on long rides, rough roads and epic adventures
- BB386EVO bottom bracket substantially increases torsional rigidity, strength and power transfer, while providing increased rear tire clearance
- Frame weight: 998 grams
- Available as a complete bike or as a frame/fork/headset
- Sizes XS, S, M, L, XL for riders between 5' (152cm) and 6'5" (196cm)

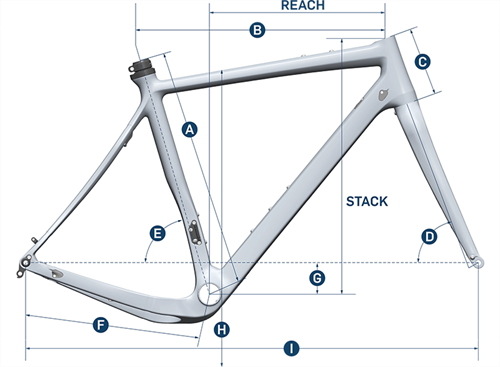

A Seat Tube Length (C-T) 45.8 cm 52.8 cm 54.8 cm 56.8 cm 58.8 cm
B Top Tube Length 51.5 cm 53.8 cm 56.5 cm 57.8 cm 59 cm
C Head Tube Length 10.5 cm 13 cm 15.5 cm 17 cm 19.5 cm
D Head Tube Angle 70.0° 71.5° 72.0° 72.0° 72.0°
E Seat Tube Angle (Eff.) 74.8° 74.0° 73.5° 73.0° 73.0°
F Chainstay Length 42 cm 42 cm 42 cm 42 cm 42 cm
G Bottom Bracket Drop 7 cm 7 cm 7 cm 7 cm 7 cm
H Standover 70.5 cm 76.6 cm 78.7 cm 80.5 cm 82.5 cm
Wheelbase 100 cm 100.2 cm 102 cm 102.8 cm 103.8 cm
Stack 52 cm 54.9 cm 57.4 cm 58.9 cm 61.2 cm
Reach 37.4 cm 38.1 cm 39.5 cm 39.8 cm 40 cm

 XS, S, M, L, XL for riders between 5' (152cm) and 6'5" (196cm)


Part Numbers

Option UPC MPN Store SKU
Deep Metallic Blue / X-Small / Alloy Wheels 196338022835 00VLTV570ADADI2DIBXSSTDHN VAU2399785S
Deep Metallic Blue / X-Small / Carbon Wheels 196338023634 00VLTV570CDADI2DIBXSSTDHN VAU23304351S
Deep Metallic Blue / Small / Alloy Wheels 196338022798 00VLTV570ADADI2DIBSMSTDHN VAU2368431M
Deep Metallic Blue / Small / Carbon Wheels 196338023597 00VLTV570CDADI2DIBSMSTDHN VAU23399197M
Deep Metallic Blue / Medium / Alloy Wheels 196338022774 00VLTV570ADADI2DIBMDSTDHN VAU23117827D
Deep Metallic Blue / Medium / Carbon Wheels 196338023573 00VLTV570CDADI2DIBMDSTDHN VAU23370662D
Deep Metallic Blue / Large / Alloy Wheels 196338022750 00VLTV570ADADI2DIBLGSTDHN VAU23911354G
Deep Metallic Blue / Large / Carbon Wheels 196338023559 00VLTV570CDADI2DIBLGSTDHN VAU23426717G
Deep Metallic Blue / X-Large / Alloy Wheels 196338022811 00VLTV570ADADI2DIBXLSTDHN VAU23474243L
Deep Metallic Blue / X-Large / Carbon Wheels 196338023610 00VLTV570CDADI2DIBXLSTDHN VAU23847594L
Firebrick Red / X-Small / Alloy Wheels 196338022934 00VLTV570ADADI2FBRXSSTDHN VAU19212938S
Firebrick Red / X-Small / Carbon Wheels 196338023733 00VLTV570CDADI2FBRXSSTDHN VAU19216692S
Firebrick Red / Small / Alloy Wheels 196338022897 00VLTV570ADADI2FBRSMSTDHN VAU19631575M
Firebrick Red / Small / Carbon Wheels 196338023696 00VLTV570CDADI2FBRSMSTDHN VAU19261013M
Firebrick Red / Medium / Alloy Wheels 196338022873 00VLTV570ADADI2FBRMDSTDHN VAU19663866D
Firebrick Red / Medium / Carbon Wheels 196338023672 00VLTV570CDADI2FBRMDSTDHN VAU19189443D
Firebrick Red / Large / Alloy Wheels 196338022859 00VLTV570ADADI2FBRLGSTDHN VAU19700347G
Firebrick Red / Large / Carbon Wheels 196338023658 00VLTV570CDADI2FBRLGSTDHN VAU19310998G
Firebrick Red / X-Large / Alloy Wheels 196338022910 00VLTV570ADADI2FBRXLSTDHN VAU19110513L
Firebrick Red / X-Large / Carbon Wheels 196338023719 00VLTV570CDADI2FBRXLSTDHN VAU19477195L
